Read about what is acoustic glass and the benefits when used in a window.

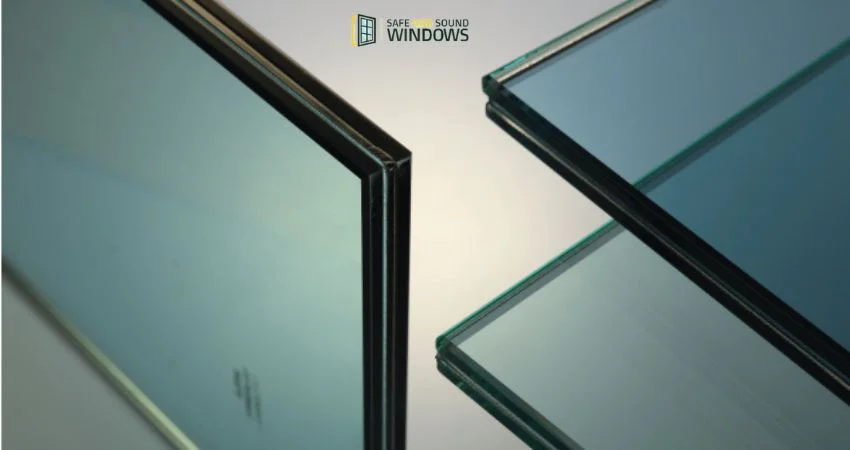

Acoustic glass is characterized by its unique construction. It typically consists of a double glazed unit where at least one pane is laminated. The lamination includes a Polyvinyl Butyral (PVB) interlayer, which acts as a sound dampening core.

This core disrupts sound waves, effectively reducing the noise that passes through the glass. The combination of different glass thicknesses and the interlayer enhances the glass’s ability to break up sound energy, making it an effective solution for noise reduction.

What is Acoustic Glass?

Acoustic glass, commonly referred to as soundproof glass or noise reduction glass, is a specialized type of glass designed to significantly reduce noise transmission through windows and doors

This innovative material is integral to the construction of acoustic glass windows and acoustic double glazing, providing enhanced tranquility in both residential and commercial environments.

The primary materials used in the production of acoustic glass

  • Laminated Glass: This glass type features two or more layers of glass bonded with an interlayer, typically made of PVB or Ethylene Vinyl Acetate (EVA). The interlayer serves to absorb sound vibrations, enhancing the soundproofing qualities of the glass.

  • Polyvinyl Butyral (PVB): PVB is a resin used to laminate the layers of glass together, ensuring they remain bound even when cracked. This material is not only crucial for sound reduction but also maintains the optical clarity of the glass, ensuring that visibility is not compromised.

  • Double-Glazed Glass: Consisting of two glass panes separated by an air gap, double-glazed glass provides both thermal insulation and noise reduction. The air gap acts as an additional barrier against sound, improving the overall sound transmission class (STC) rating of the window.

We offer safety glass for all of our windows

Keep your loved ones and pets safe with safety glass in your doors and windows.

How Does Acoustic Glass Work?

acoustic Glass glazing

Principles of Sound Transmission

Acoustic glass technology utilizes several principles of sound transmission to reduce noise. Sound waves, when interacting with materials like glass, are either reflected, absorbed, or transmitted.

The effectiveness of acoustic glass in sound reduction largely depends on these interactions. For instance, increasing the thickness of the glass pane enhances noise reduction across most frequencies, although the rigidity of glass can limit these improvements.

Furthermore, the size of the window relative to the wavelength of sound waves and the constraints at the edges of the glass can increase the transmission loss (TL), making smaller panels like windows more effective at blocking sound compared to larger surfaces such as walls.

Role of Laminated Glass

Laminated glass plays a crucial role in the functioning of acoustic glass by providing enhanced sound insulation. This type of glass consists of multiple layers bonded together with a plastic interlayer, typically polyvinyl butyral (PVB), which acts as a damping medium.

The PVB interlayer absorbs and dissipates vibrational energy from sound waves, significantly reducing the sound that passes through.

Above the coincidence frequency, where sound waves align with the natural frequency of the glass, laminated glass can achieve higher TL compared to solid glass due to the damping effects of the interlayer.

Impact of Double Glazing

Double glazing enhances acoustic insulation by using two panes of glass separated by an air or gas-filled space. This setup significantly reduces the amount of noise entering a space.

The air or gas acts as an insulating barrier, disrupting the path of sound waves and diminishing their ability to transmit through the glass. Key factors influencing the effectiveness of double glazing in sound reduction include:

  • Glass Pane Thickness: Thicker glass panes tend to block more sound. However, the overall effectiveness also depends on the air gap between the panes.
  • Air Gap Characteristics: The size of the air gap plays a critical role. A larger gap generally results in better sound insulation. However, if the gap is too small, it can lead to mass-air-mass resonance, reducing the TL at certain frequencies.
  • Installation Quality: Proper installation is crucial. Gaps or poor sealing can undermine the soundproofing capabilities of double-glazed windows.

Explore Window Glazing

TRIPLE GLAZED WINDOWS by Safe and sound

DOUBLE GLAZED WINDOWS

Our high-quality double glazed windows will keep your home warm, safe and quiet.

Bay and Bow Windows Installation By Safe and Sound Windows

TRIPLE GLAZED WINDOWS

Our triple glazed windows are our most energy-efficient, with an A++ energy rating.

Benefits of Acoustic Glass

Noise Reduction

Acoustic glass is engineered to provide superior soundproofing capabilities. Its construction involves multiple layers of glass combined with a special noise-dampening interlayer, typically made of polyvinyl butyral (PVB).

This design not only absorbs sound vibrations but also disrupts the path of sound waves, significantly reducing noise transmission. Products from Safe and Sound Windows, utilizing such technology, can decrease noise levels by up to 54 decibels in triple glazing units, making them highly effective in environments affected by traffic, aircraft, or industrial noise.

Energy Efficiency

In addition to its soundproofing qualities, acoustic glass offers notable energy-saving benefits. The use of multiple glass panes and wider air gaps enhances the insulation properties of windows, helping to maintain a consistent indoor temperature.

This superior insulation reduces the reliance on heating and cooling systems, leading to lower energy bills and a smaller carbon footprint. Safe and Sound Windows incorporates technologies like low-emissivity (Low-E) coatings and inert gases such as argon in the air gaps to further improve thermal efficiency, achieving U-values as low as 0.8W/m²K in triple glazed units.

Safe and sound Noise Reduction Windows

Safe and Sound Noise reducing glass can reduce external sound by up to 40dB.

Here are some frequently asked questions

Acoustic glass minimizes the transmission of sound waves by incorporating a layer of Polyvinyl Butyral (PVB) between two panes of glass, which are then laminated together. This structure not only reduces noise but also makes the glass appear as a single pane, enhancing its sound dampening properties.

Acoustic glass is particularly beneficial in noisy business environments as it significantly reduces sound transmission. Additionally, it offers enhanced safety features; it is shatterproof, and if broken, the glass fragments remain adhered to the PVB interlayer, minimizing the risk of injury.

Conversely, heat-strengthened glass breaks in a more controlled way but needs to be laminated to be considered safety glass, as it does not break into small pieces.

Acoustic glass can significantly reduce noise, with high-end triple glazed units offering a noise reduction of up to 54 decibels (dB) and double glazed units up to 52 dB. More basic acoustic glazing solutions start at a noise reduction level of around 36 dB.

Laminated glass is considered the best option for soundproofing windows. It consists of two layers of glass with a thin layer of Polyvinyl Butyral (PVB) in between, which not only dampens sound waves effectively but also enhances the glass’s resistance to breaking.
