How does double glazing work?
How long do uPVC, aluminium and timber windows last and what are the signs that your double glazing needs replacing?

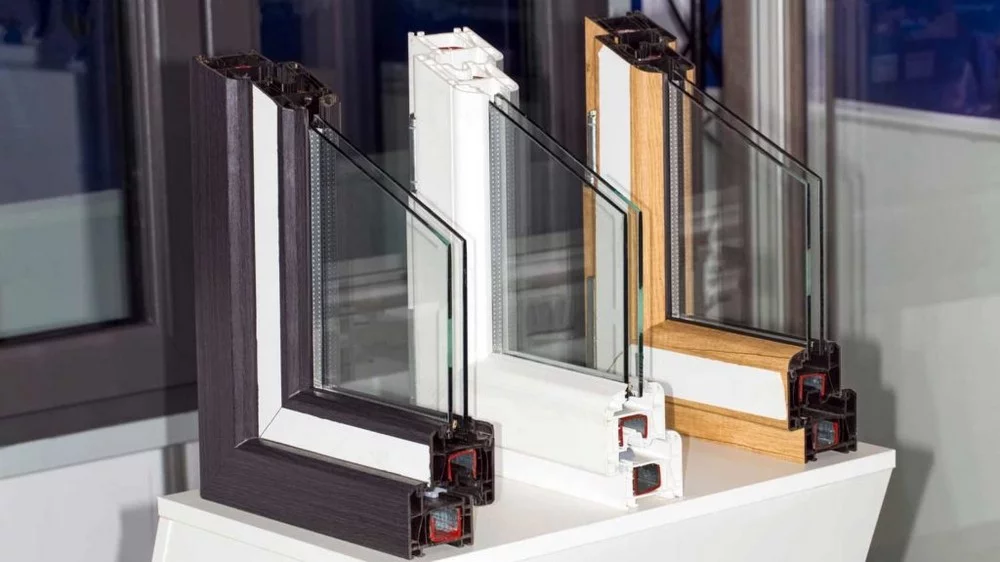

What is Double Glazing?
Double glazing, also known as double-pane or insulated glass, is a type of window or glass unit that consists of two layers of glass separated by a sealed air or gas-filled space.
This space, typically around 6-20 millimeters wide, acts as an insulating barrier, reducing the transfer of heat and sound between the inside and outside of a building.
The main advantage of double glazing is thermal insulation, which increases a room’s energy efficiency by preventing cold air from entering and keeping heat in.
structure requirements were established in 2002, stating that all replacement windows must be at least double glazed C rated, unless the house is a listed structure or in a conservation area, due to the significant impact double glazing windows have on energy efficiency.
Who Invented Double Glazing?
The concept of double glazing has been around for centuries, with early versions of the technology dating back to the 18th century. However, the modern form of double glazing was developed in the 1930s by Scottish engineer James Slessor.
Slessor patented his design for a double-glazed window unit, which he called the “Thermovent,” and it quickly gained popularity as a way to improve the energy efficiency and comfort of buildings.

How Does Double Glazing Work?
The basic principle behind how double glazing works is the creation of an insulating air or gas-filled space between the two panes of glass. This space acts as a barrier to the transfer of heat, reducing the amount of heat that can pass through the window.
Additionally, the two panes of glass also help to reduce the transmission of sound, making double-glazed windows more effective at reducing noise levels.
Thinking About New Double-Glazed Windows?
View the safe and sound windows range of Triple Glazing.
How Does Double Glazing Reduce Heat Loss?
Insulating Air Space: The air or gas-filled space between the two panes of glass acts as an insulating layer, slowing down the transfer of heat from the inside of the building to the outside.
Low-Emissivity Coatings: Many double-glazed windows also feature a low-emissivity (low-E) coating on one of the glass panes. This coating reflects heat back into the building, further reducing heat loss.
Argon or Krypton Gas: Some double-glazed units use argon or krypton gas instead of air in the space between the panes. These gases are denser than air, providing even better insulation and reducing heat transfer.
In a double glazed unit, the outside pane of glass and the internal will be different temperatures.
How Does Double Glazing Reduce Noise?
Double glazing is also effective in reducing the amount of noise that can enter a building. The two panes of glass and the air or gas-filled space between them create a barrier that helps to block and absorb sound waves, reducing the amount of external noise that can be heard inside the building.
Acoustic Insulation
The air or gas-filled space between the two panes of glass acts as an acoustic barrier, reducing the transmission of sound waves through the window.
Laminated Glass
Some double-glazed windows also feature a layer of laminated glass, which further enhances the acoustic insulation properties of the unit.
Thickness of Glass Panes
The thickness of the glass panes used in double-glazed windows can also affect the noise-reducing properties, with thicker panes generally providing better sound insulation.
Disrupting sound waves and frequencies as they travel through a material, however, is the key to minimizing noise. You may do this by closely mixing glass pieces of varying thicknesses.
Safe and sound Noise Reduction glass lowers the frequency of waves as they travel through by adding an extra layer of unique laminate coating to absorb more energy from the waves.
What are the benefits of double glazing?
- Keep more external noise out of your home
- Retain more heat and keep your home warmer
- Reduce condensation on your windows
- Reduce the amount of energy you use to heat your home
- Reduce your energy bills
- Add value to your home

How Does Double Glazing Reduce Condensation?
Tiny, imperceptible molecular water droplets are present throughout the atmosphere. Warm air contains moisture because the molecules are far separated; however, when the air cools, the molecules assemble.
The ‘dew point’ is the point at which molecules become so near to one another that they mix to form a discernible liquid.
When wet air comes into touch with a cold surface, like a windowpane, condensation appears. Kitchen windows and bathroom mirrors are particularly steamy because these areas of the house absorb more moisture than normal when you boil a kettle, cook, or take a hot shower.
Insulating Properties
The insulating properties of the air or gas-filled space between the panes of glass help to maintain a more consistent temperature on the inner pane of the window, reducing the likelihood of condensation forming.
Reduced Heat Transfer
The reduced heat transfer through the window also helps to prevent the inner pane from becoming too cold, which can lead to condensation.
Improved Air Circulation
Double-glazed windows can also improve air circulation within a room, helping to reduce the buildup of moisture that can lead to condensation.
Solar Gain Through Double Glazing
Double glazing can also provide benefits in terms of solar gain, which is the amount of heat that is gained through the window from the sun’s rays.
Depending on the orientation and location of the window, this solar gain can help to reduce the amount of heating needed in a building, especially during the colder months.
Safe and Sound Window Styles
How is Double Glazing Made?
Glass Cutting: The two panes of glass are cut to the desired size and shape.
Spacer Installation: A spacer, usually made of metal or plastic, is installed around the edges of one of the glass panes to create the air or gas-filled space.
Sealing: The two panes of glass are then sealed together around the spacer, creating a completely airtight unit.
Gas Filling: In some cases, the air between the panes is replaced with a denser gas, such as argon or krypton, to improve the insulating properties of the unit.
Low-E Coating: One of the glass panes may also be coated with a low-emissivity (low-E) coating to further enhance the thermal insulation properties of the double-glazed unit.
